SIMPLICITY AT ITS BEST

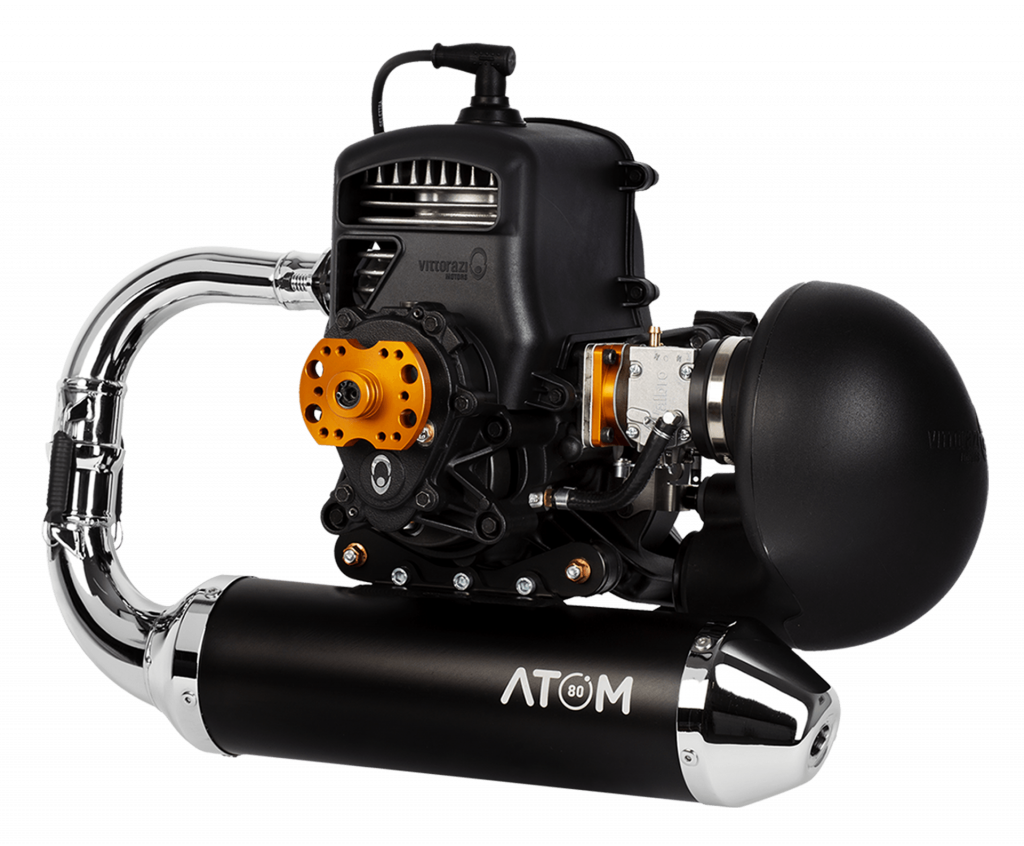

The Atom 80 is the perfect engine, thanks to its lightweight, ease of starting, and low maintenance. The MY’22 version features a new design, a new fusion of technology with the engine crankcase and the reduction drive, and a new carburettor with improved performance and greater stability.
Always in stock, call for the latest price and delivery options.
SPECIFICATIONS
|
Cycle |
2-Stroke |
|
Swept volume |
78.2cc |
|
Power |
16 hp at 9500 RPM |
|
Intake |
Silencer airbox - Walbro carburettor WB - Reed valve intake |
|
Cooling |
Forced air ventilation system with fan and conveyor |
|
Starter
|
Pull starter |
| Clutch | Adjustable centrifugal |
|
Reduction drive |
Oil-lubricated helicoidal gearings - Ratio 1/3.8 |
|
Exhaust pipe |
Hand-made pipe, chrome plating, resonator and Db-killer system |
| Fuel | Unleaded gasoline – Synthetic oil 1.5% |
|
Consumption |
2.70 litres/hour at 30 kgs of static thrust, prop. 130 cms at 8000 RPM |
| Weight | 10.4 kgs |
| Max Thrust | 52 kgs prop. 125 cms at 9800 RPM - 55 kgs prop. 130 cms at 9800 RPM |
